VOLVO P2 - CEM & ECM & KEY Synchronization Utility. CEM MC68 28F400 / ECM EDC15C11 95P08
VOLVO P2 - CEM & ECM & KEY Synchronization Utility. CEM MC68 28F400 / ECM EDC15C11 95P08

$
60

Add to cart

CEM: 28F400 / ECM: EDC15C11 95P08

System requirements:

  • Windows 10 64bit or Windows 11 64bit.
  • Tested CPU: Intel Core i3 - i9 / AMD Ryzen 5, 9 / Apple Silicon
  •  Internet connection.

This CEM unit was used on cars: S80 1999–2004, XC90 2003–2004, S60 2001–2004, V70 2000–2004, XC70 2001–2004

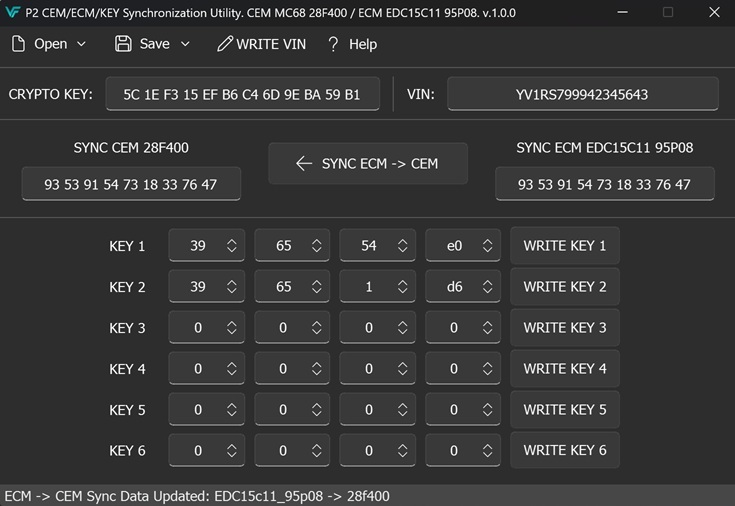

The program synchronizes dumps read from the MC68+28F400 CEM modules and the EDC15C11 95P08 EEPROM.
The program also writes the new meg48 key identifier to the 28F400 dump of the CEM unit.
The program outputs a meg48 cryptoarchive (key format), which describes how to write the crypto key data from the 28F400 dump of the CEM unit to a new meg48 key using any key programmer. The archive with HELP contains the CEM68376BDM_v5_0_1 program, which allows you to read and write the 28F400 dump from the CEM unit via the BDM contacts. To do this, you need to assemble an adapter from an Arduino Mega 2560 Pro and a MicroSD card adapter. All connections and program operation are described in detail and included in the archive. The program calculates all checksums in the corrected dumps.
VOLVO P2 - CEM & ECM & KEY Synchronization Utility. CEM MC68 28F400 / ECM EDC15C11 95P08

Processing video...

Terms of Use for Desktop Programs

By using this program, you agree to the following terms:
  • Do not attempt to reverse engineer or modify the executable or activation logic
  • Do not share or distribute the software or license files
  • Do not spoof hardware ID or simulate activation
  • Do not try to bypass security checks, licensing
