Synchronize CEM and ECM, change configuration, recover keys and restore module data. Get the software for your bench or ask us to help with a vehicle.
Platform coverage
- IMMO3
- P1
- P2
- P3
- SPA
- CMA
Workshop services
What’s on your bench?
Choose the job to check supported vehicles, module numbers and the files needed for a repair.
-

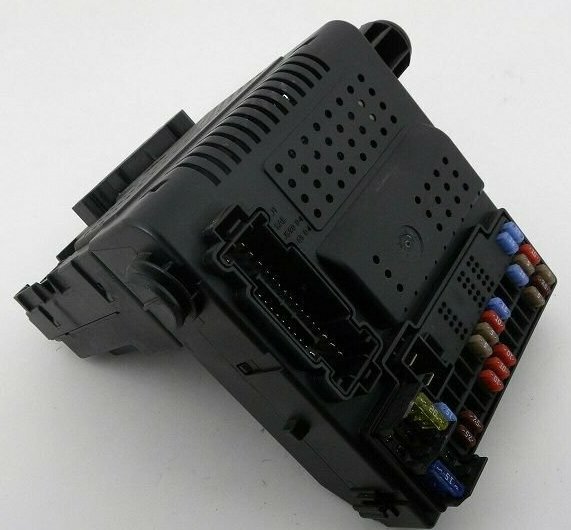

Volvo P1 / P2CEM–ECM synchronization & key recovery
P1: C30, S40, V50. P2: S60, S80, XC70, XC90, V70.
-
Volvo P3CEM–ECM synchronization & key recovery
S60 II, S80 II, XC60 II, XC70 II, V70 II.
-
Volvo IMMO3IMMO3–ECM synchronization & key recovery
S40, V40, S70, C70 · 1998–2001. Siemens, Denso, MSA 15.8, MSA 15.5.
-
Volvo P2Used key fob registration
Remote registration for S60, S80, V70, XC70 and XC90.
-
Volvo SPA / CMA / P3 / P1Steering column lock · SCL OFF
Remote deactivation using a dump from the CEM.
-
Multi-brandIMMO–ECU synchronization
Match immobilizer data between units. Check vehicle coverage in the synchronization list.
-
Volvo P1 / P2 / P3 / SPA / CMACEM configuration & cloning
Restore lost configuration data, change vehicle options or clone a CEM.
-
Volvo P1 / P2 / P3MOST security · ITP OFF
Disable MOST security from CEM memory dumps.
-
Audi / VW TouaregBCM2 repair & cloning
Repair ELV fault 02811 and transfer immobilizer data to a replacement BCM2.
Technical reference
Detailed description of services
Check the module identifiers, memory types and equipment for a specific repair.
Synchronization listPDF · 7 pages · 133 KB↗P1 & P2 · CEM–ECM and key recovery
P1 · C30, S40, V50
Synchronize the CEM with SID206, SID803, SID807EVO, EDC16, SIM280, Denso and ESU121, ESU131 or ESU411 ECMs, and recover keys. The individual number of a replacement ABS or steering column lock (SCL) unit can also be written to the CEM.
P2 · S60, S80, XC70, XC90, V70
Attempts to start a vehicle with a discharged battery can result in loss of key data and ECM synchronization in the CEM. For immobilizer recovery, provide the CEM, ECM and all of the vehicle’s keys. These vehicles used three CEM types.
- Straight CEM · 28F400 flash
- 08696035, 08688434, 08688513, 8645697, 8645716, 8676284, 9452596, 30657428, 30682664.
- L-shaped CEM · Renesas M30855F processor
- 30728539, 30765148, 30765643, 30786476, 30786579, 30786890, 30795115, 31282455, 31394157, 30728542, 30765149, 30765646, 30786475, 30786578, 30786889, 30795114, 31282457, 31314468, 31394158.
- L-shaped CEM · Renesas M30835F processor
- 30728357, 30682982, 30728356, 30682981.

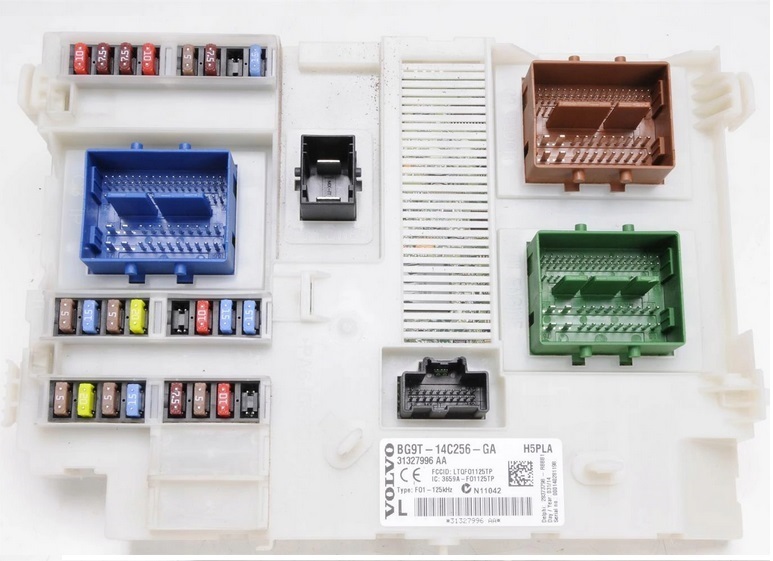

P3 · CEM–ECM and key recovery
On S60 II, S80 II, XC60 II, XC70 II and V70 II vehicles, the P3 CEM normally retains synchronization data and keys. After collision damage, a replacement ECM, ABS or steering column lock may need to be paired to the CEM.
Services include CEM–ECM synchronization or cloning, key recovery, and recording the individual number of a replacement ABS or SCL unit. Supported ECMs include Denso, SID206, EDC17CP22 and Bosch units.

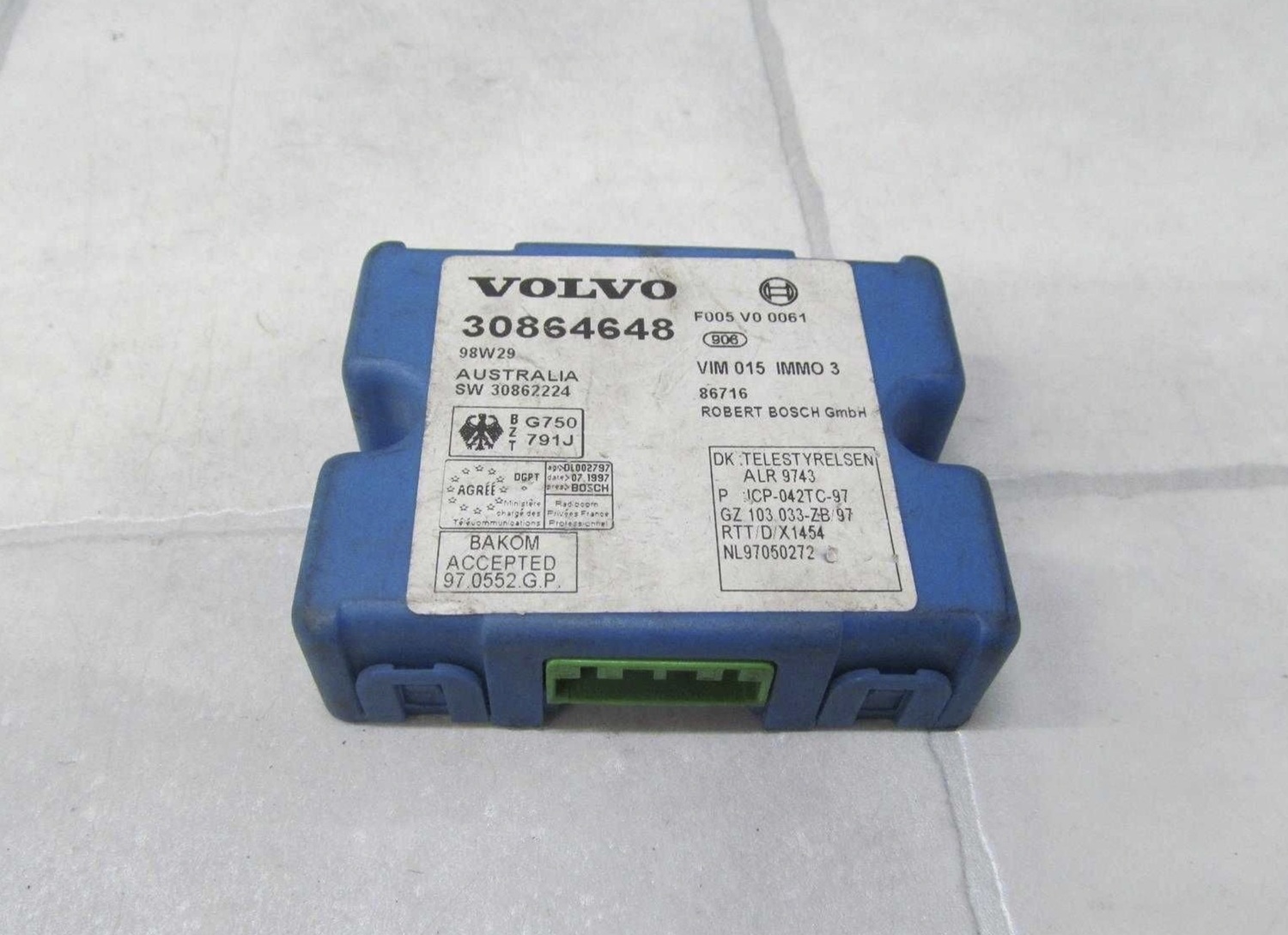

IMMO3 · ECM synchronization and key recovery
Restore keys and synchronization between the IMMO3 unit and Siemens, Denso, MSA 15.8 or MSA 15.5 ECMs fitted to Volvo S40, V40, S70 and C70 vehicles built from 1998 to 2001.

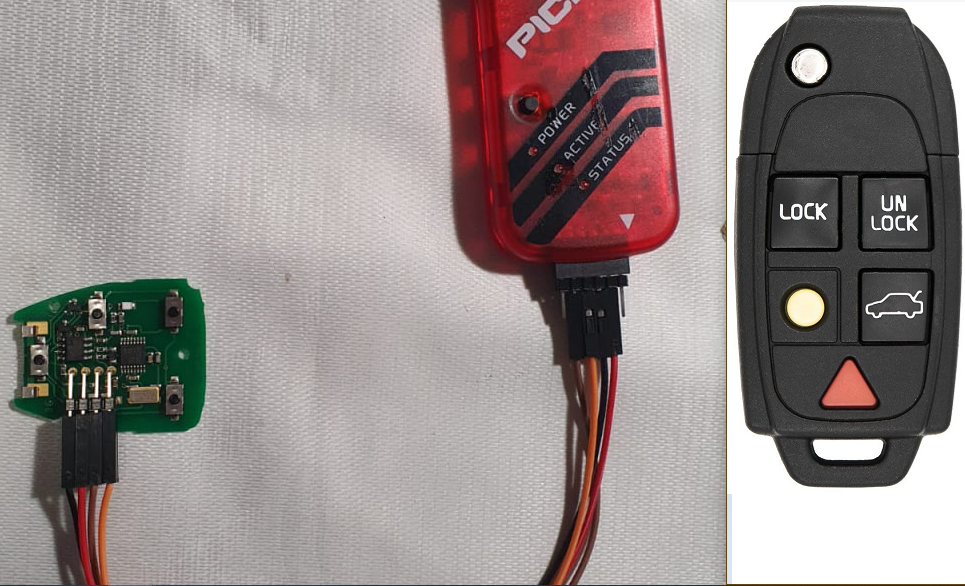

P2 · Used key fob registration
For S60, S80, V70, XC70 and XC90 vehicles from 2004–2014, we can register a used starting key and radio remote, remove lost keys from the CEM and UEM and write or clone a MEG48 starting transponder.
For remote work, prepare a PICkit 3 to program the remote and a programmer that can read the UEM EEPROM. We use AnyDesk to access your PICkit 3 and write the remote data.

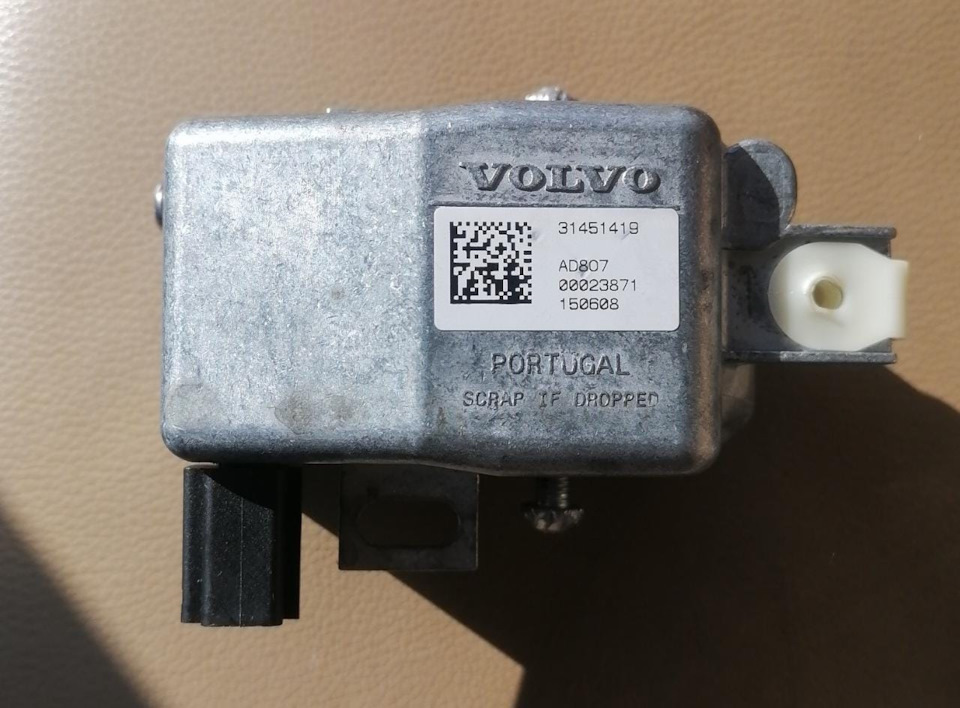

SPA, CMA, P3 & P1 · SCL OFF
The steering column lock can be disabled remotely on these platforms using a dump from the CEM. Send the CEM dump for the vehicle you are working on.

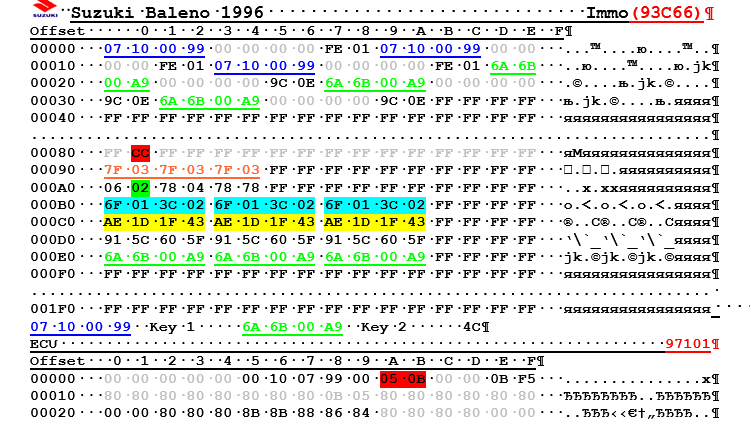

IMMO–ECU synchronization · Vehicle coverage
- Ford
- Focus, C-MAX, S-MAX, Fiesta, Kuga, Escape, Figo, Fusion, Tourneo, Transit, Mondeo.
- Mazda
- 2, 3, 5, 6, 626.
- Renault
- Mégane III, Fluence 3, Scénic III, Master III.
- Other makes
- All models listed for Chery, Geely, Great Wall, Lifan, Mitsubishi, Suzuki and Volvo. Consult the full list for the immobilizer and ECU pairing.

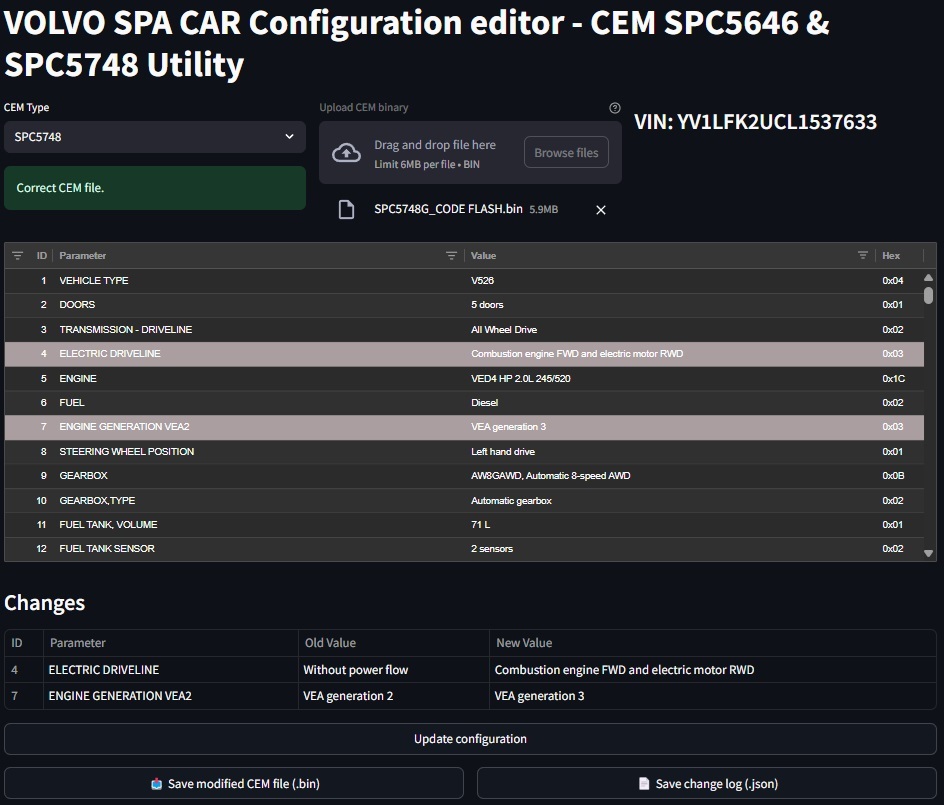

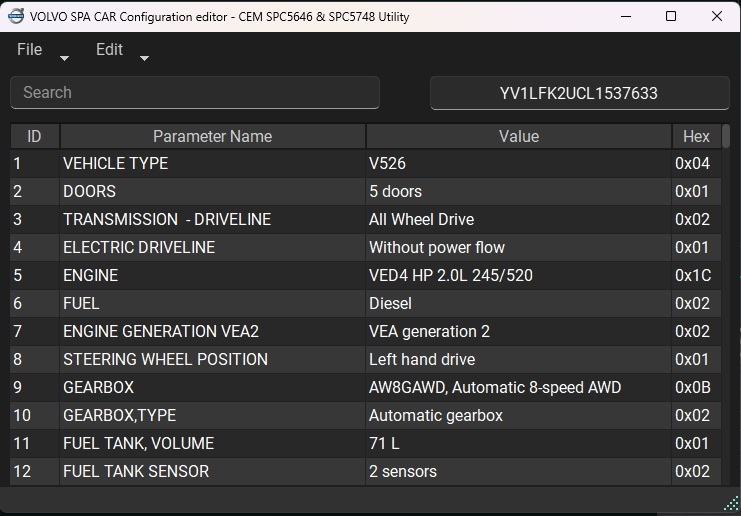

CEM configuration recovery & cloning
Restore lost CEM configuration data, modify settings or clone the CEM on P1, P2, P3, SPA and CMA vehicles.
Options include cruise control, auxiliary heating, km/miles, alarm, BLIS, steering, navigation, Bluetooth, USB, iPod, trip computer, MOST, radio frequencies, audio class, TPMS, Neutral/Parking/Drive, phone settings and much more.

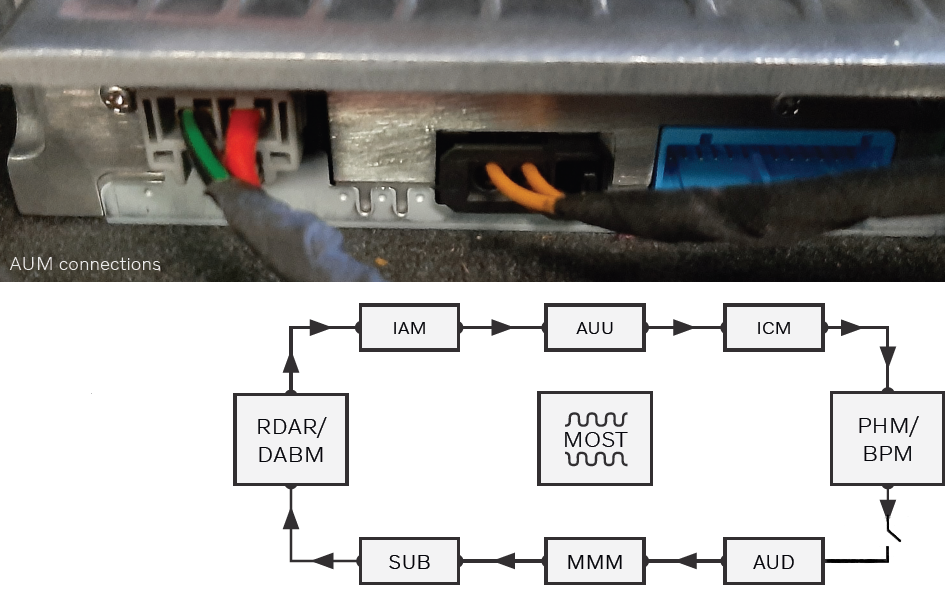

MOST security · CEM memory to read
Read and send the CEM dumps for the relevant platform.
- P1
- Right-hand Motorola 9S12 processor.
- P2
- only for XC90 cars Flach CEM 28F400, corner CEM, flash M32C and eprom 93LC86. V40 CEM: Dflash SPC560B60L7X, and eeprom st95320.
- P3
- M32C flash and 25LC320 EEPROM, or a CEM with R32C R5F64524KFD.

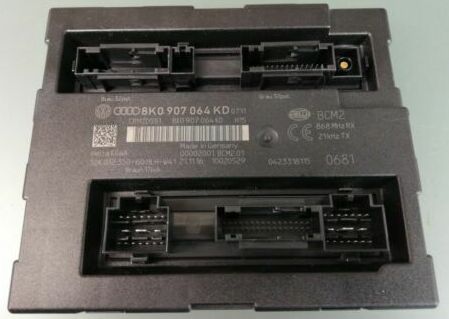

Audi / VW Touareg · BCM2 fault codes
We remotely restore and repair BCM2 units and transfer immobilizer data to a replacement BCM2. The following codes and dashboard warning are covered.
- 02811
- Control module for electronic steering column lock (J764).
- 00003
- Control module error · 014 Defective.
- 16349
- Control module error · 014 Defective.
- 16366
- Control module internal malfunction, CPU 2 · 014 Defective.
- Dashboard
- “Ignition lock defective.”
- Data transfer
- IMMO to another BCM2 block.
Remote repair support
One vehicle.
One repair.
Request a quote for a single repair without buying a software license. A technician will review the fault and confirm which files are needed.
-
Identify the vehicle
Include the model, year and platform. Add the part numbers of the modules.
-
Describe the fault
Tell us what happened, which keys or modules were replaced and any fault codes you’ve read.
-
Prepare the files
Let us know which CEM or ECM dumps and key IDs you can read. If you need help reading them, mention that in the application.
Customer feedback & repair videos
IMMO FROL on YouTube ↗-
Volvo XC90
Customer feedback
Watch on YouTube ↗ -
Volvo S60
Customer feedback
Watch on YouTube ↗ -
Volvo S90 SPA
Engine start with a donor Denso ECM
Watch on YouTube ↗ -
Volvo XC90
Engine start with CEM 00004xxxxx
Watch on YouTube ↗ -
2004 Volvo XC90
Engine start with CEM 28F400
Watch on YouTube ↗
Signs of data corruption in the immobilizer firmware
When you describe a no-start fault, tell us what happens at the ignition and which codes the CEM or ECM has stored.
- The ignition and instrument panel stay off. The starter does not turn.
- The starter turns and the engine starts, then stalls after 1–2 seconds.
- The dashboard displays “UNABLE TO START, PLEASE TRY AGAIN”.
- CEM-6C48 is stored in the CEM. The transponder type signal is invalid.
- ECM-720A is stored in the ECM. There is no signal from the immobilizer.
- The CEM reports zero registered keys and engine start is inhibited.
